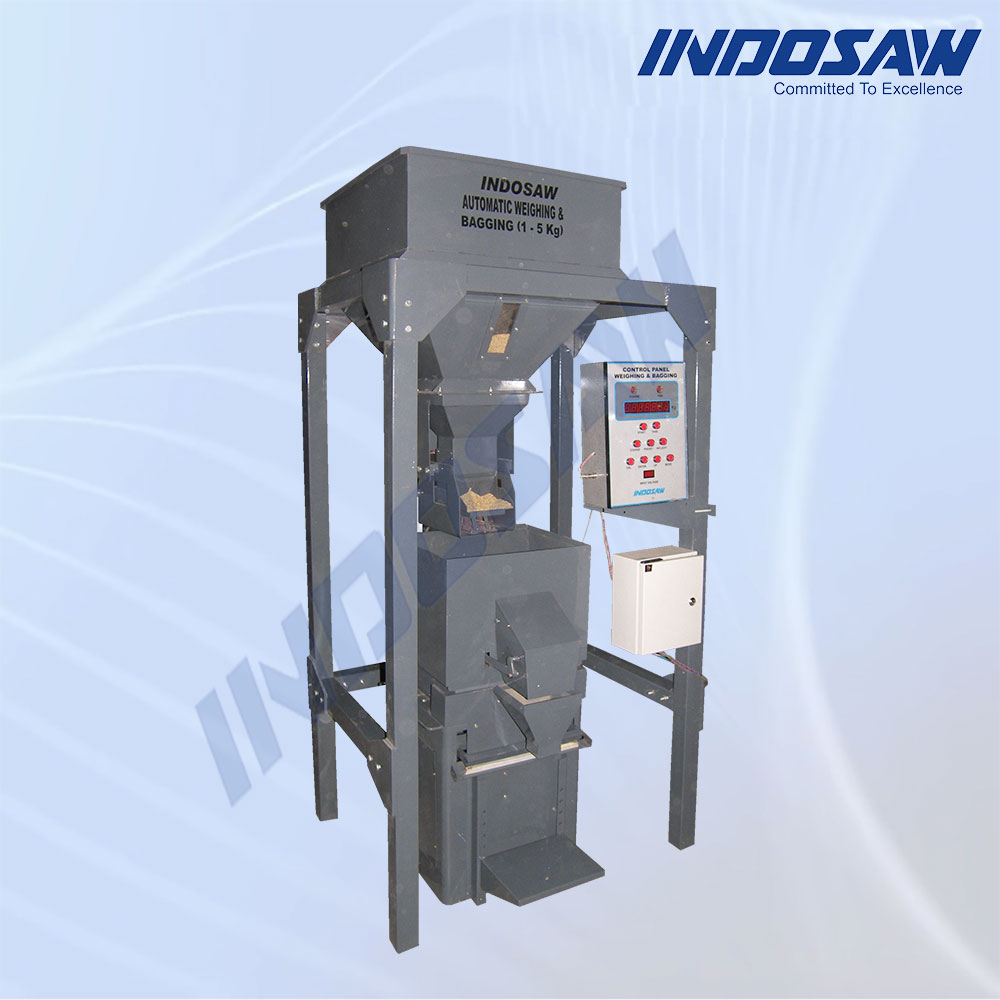

Indosaw Automatic Weighing & Bagging Machine Vibratory Feeder 1-5kg
Item Code : 6401
Description:
The grain or seed material is initially loaded into the main storage bin using buckets attached to an elevator, which is powered by a motor located on the top platform. A ladder is provided for access to the upper platform, allowing inspection and maintenance of key components such as the fine/coarse cylinder, feed control system, and weighing bin.
The control panel sends a signal to the discharge panel to initiate the weighing process. Once the material is ready, a foot switch activates the weighing bin, which automatically clamps the bag in place. After filling, the bag is conveyed to the stitching head via a conveyor belt, where it is stitched and then passed on to the sealing machine for final sealing.
Salient Features
Specifications
Salient Features
- Big Clear Digital LED Display digit height 25mm.
- Vibratory feeder, no need for compressed air.
- Low power consumption.
- Load cell based for better accuracy.
- Machine can run on UPS for 30 min incase of power failure.
- Microcontroller based electronic controller.
- Model approval from weight and measurement, department of legal metrology, ministry of consumer affairs, govt. of India.
- Programmable net weight.
- External weighing calibration.
- Gravity feeder.
Specifications
| Weighing Range | 1kg to 5Kg |
| Accuracy | ± 0.5% |
| Display | 7 Segment, 7 Digit LED display, Digit height 25mm. |
| Output Speed | 4-5 bags per min. (No. of bags/min depends upon the commodity being weighed, weight of bag and accuracy required) |
| Feeding system | Vibratory feeder (no need for compressed air). |
| Bag type | Open mouth bags. |
| Power Consumption | 600 watts only. |
| UPS | 1 KVA (Machine can run on UPS for 30 min incase of power failure) |
